Order picker 2.0t

750 mm
2000 kg

Maximum picking performance for loads up to 2000 kg
Powerful motor with high acceleration
jetPILOT for intuitive operation same as driving a car
Efficient and safe picking with scissor lift
Semi-automatic remote control easyPILOT (optional)

ECE 320

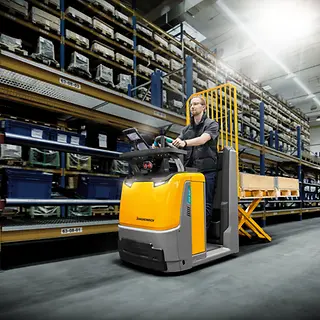

Our powerful and dynamic ECE 320 low level order picker is the perfect assistant for safe and efficient picking thanks to a lifting load section with scissor lift for two pallets. The ergonomic truck concept coupled with a high technical power level guarantees maximum picking performance and optimum energy efficiency. The highly efficient 3.2 kW motor offers high acceleration and top speed as well as various performance packages for even more picks per hour. The jetPILOT multifunctional steering wheel allows intuitive, comfortable operations and relieves pressure on the neck and spine. An individually adaptable workstation offers optimal all-round visibility and makes working easier thanks to the ideal positioning of all operating elements. The ECE's semi-automatic control provided by a wireless operating unit is ideal for improved picking processes with high performance requirements, making unnecessary journeys a thing of the past.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

Learn more

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Powerful and efficient drive concept

Powerful acceleration and high top speed.
Optional drivePLUS package with highly efficient 3.2 kW motor for even greater drive and acceleration performance.
Safe cornering speed thanks to load-dependent curveCONTROL (optional).
Optional drive&ecoPLUS package for additional energy saving.

Flexible switching between different control options

Long distances (from approx. 10 m): Travelling with jetPILOT.
Medium distances: Remote operation with Jungheinrich easyPILOT allows for full focus on the picking process.
Short distances: Positioning at the correct pallet and fine adjustment, e.g. via touch mode on the backrest (optional).

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and low maintenance in comparison with lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

Comfort charging system for lithium-ion batteries

Battery charging system with comfort charging socket and plug for time-saving booster charging.
Simple and intuitive handling.

Hydraulically lifting stand-on platform (HP) (optional)

For frequent order picking from the second racking level.
Rapid and safe raising of the operator up to the height of the battery panel.
Operation of platform via foot pedal, leaving hands free for order picking.
The optional jetPILOT can be raised together with the platform (HP-LJ), allowing the truck to be positioned even when the platform is raised.

Improved visibility

Floor spot – significant reduction of risk to collide in blind spots due to a red dot of light projected onto the floor approx. 3 m in front of the truck (optional).

Rugged construction for the toughest applications

Impact-resistant steel drive panel.
High-quality stainless steel skirt raised extra high on the front panel.

Central display and clear instruments for complete overview

Activation of the truck by EasyAccess via softkey, PIN code or optional transponder card.
The 2-inch display provides information on the battery discharge status, number of operating hours, travel speed as well as error codes.
Selection from three travel programs via softkey (optional).

Perfect workstation for maximum picking performance

Various, individually adjustable storage options.
Additional cushioned and movable stand-on platform (optional).
Quick lifting of the load through optional double actuation of the lifting button.

jetPILOT multifunction steering wheel

Intuitive and comfortable operation, similar to a car, with safe and secure grip.
Reduced strain on neck and spinal column when cornering.
One-handed operation and automatic return of the steering wheel to straight line travel.
Adjustable to individual body size.

Additional optional equipment

A comprehensive range of accessories allows for individual tailoring to your requirements.
Additional accessories for working at the second racking level.
Sturdy, universally applicable options bracket, e.g. for radio data transmission components.
Increased ease of use with optional sprung stand-on platform to reduce the vibrations felt by the operator.

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ECE 320	2,000 kg	750 mm	14 km/h	3,747 mm	24 V
ECE 320 HP	2,000 kg	750 mm	14 km/h	3,897 mm	24 V

Downloads

ECE-320-EP_Factsheet_EN-AU_2024-12.pdf pdf (1.4 MB)

Technical data ECE 320 pdf (2.3 MB)

Product advantages ECE 320 pdf (3.2 MB)
