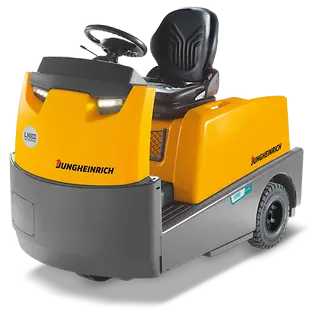

Tow tractor 7.0 - 10.0t

7000 - 10000 kg

Robust construction also for outdoor use.
Fully sprung chassis for comfortable working.
Automatic parking brake with roll-back protection.
Compatibility with different trailer types.
Powerful, maintenance-free 3-phase AC drive motor.

EZS 570-5100

Our solid and dynamic Series 5 sit-on tow tractors are ideal for the transport of loads weighing up to 10 tonnes. They can be combined with Jungheinrich GTE trailers as well as with all other trailers and are therefore very flexible. Rely on solid power for indoor and outdoor use with a sturdy steel frame that will surely last the whole life of the tow tractor. The 48-V 3-phase AC drive motor enables powerful acceleration and high end speeds. The coupling is available in different versions, it is clearly visible from the seating position and easy to reach. The fully sprung chassis protects both the operator's back and the truck. The spacious and comfortable operator position provides ample legroom, and controls such as the steering wheel, travel direction switch and indicator lever are always within easy reach. The low step tread makes entry effortless.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

Learn more

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Innovative 3-phase AC technology

More power and performance while simultaneously reducing operating costs due to maintenance-free 3-phase AC technology.
High degree of efficiency with excellent energy management.
Powerful acceleration and high travel speed even with load.
Rapid direction change.
Maintenance-free drive motor.
2-year warranty on the drive motor.

Available with lithium-ion technology

High availability thanks to extremely short charging times.
Fast, reliable comfort charging without opening the lid.
No battery exchange required.
Cost savings due to longer service life and zero maintenance when compared to lead-acid batteries.
No charging rooms or ventilation required as there is no build-up of gas.

Long operating times with lead-acid battery

Energy-saving 3-phase AC technology and high battery capacities for long operating times.
XL version allows the use of forklift truck batteries (e.g. batteries for the EFG 213 – 220 electric three-wheel counterbalance forklift trucks).
Standard version: 3 PzS 375 Ah.
XL battery compartment: 5 PzS 625 Ah.

Comfortable and safe travel

Secure traction at all times thanks to fully sprung chassis.
The automatic parking brake ensures reliable starting and roll-back protection on gradients.
Energy recovery – regenerative braking when decelerating.
Programmable slow travel button for travel at a reduced speed.
Three alternative travel programs can be set to suit individual needs.
2-stage LED lights (daytime running lights, travel lights).
Floor-Spot (optional) for more safety for operator and trucks.

Robust and safe

Frame made from high-grade, 8-mm steel plate.
Extra-high frame apron on the front cover.
Robust LED lights: front lights, rear lights and direction indicators (optional).
Lateral protection provided by skirting (optional).

Always informed

Extensive display and setting instruments always provide a complete overview on the battery discharge status, operating hour counter, speed and error codes.
Activation of the truck via PinCode (optional).
Adjustable drive parameters.

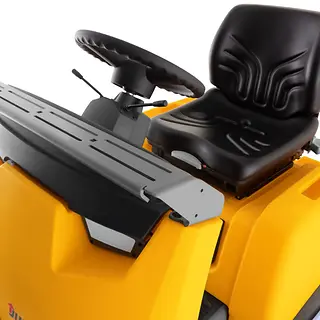

Optimum ergonomics

Easy entry and exit due to the low step tread.
Generous space for operator with spacious foot-well and ergonomic footrest.
Short distances from the operator position to the coupling and load.
Clearly visible, easily accessible coupling.
Reverse button for simple coupling and decoupling (optional).
Superelastic tyres, also non-marking (optional).
Well organised with plenty of storage.

Extensive additional equipment

Reversing control for comfortable coupling and decoupling.
Lateral battery exchange for easy exchange.
Additional steel bumper.

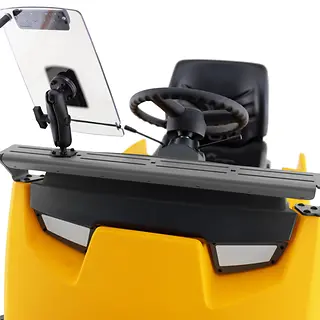

Holder for radio data components.
Different couplings.
Interfaces for the supply of our GTE trailers and for trailers from other manufacturers.
Cabins with various configurations for outdoor use.
Further options for the needs-based configuration of the tow tractor.

Model Overview

Model	Towing capacity load	Travel speed	Overall length	Battery voltage
EZS 570	7,000 kg	18 km/h	1,828 mm	48 V
EZS 580	8,000 kg	18 km/h	1,828 mm	48 V
EZS 590	9,000 kg	18 km/h	1,828 mm	48 V
EZS 5100	10,000 kg	18 km/h	2,048 mm	48 V

Downloads

EZS-5-2022_Factsheet_EN-AU_2024-12.pdf pdf (1.5 MB)

Technical data EZS 5 pdf (2.8 MB)

Product advantages EZS 5 pdf (3.1 MB)
